Fire Extinguisher MRI
FK-5-1-12 AKA Halon

Non-magnetic clean gas fire extinguisher

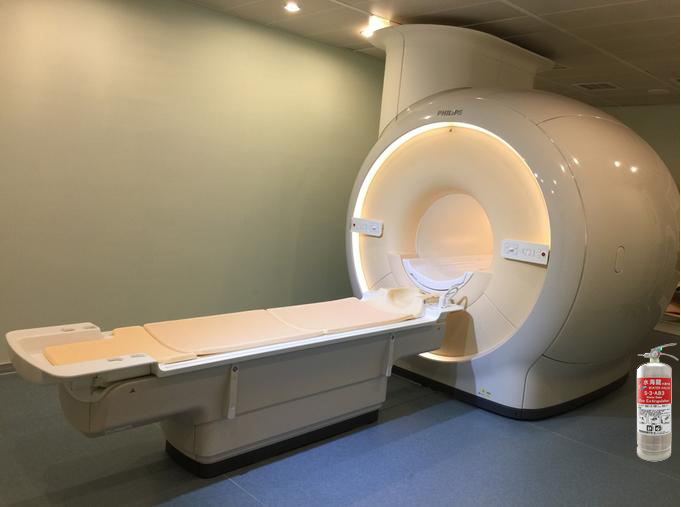

Nuclear magnetic resonance MRI fire extinguisher

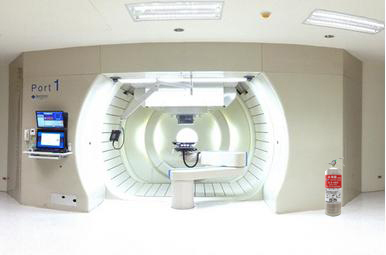

Proton Therapy PT fire extinguisher

The main feature of AKA Halon non-magnetic fire extinguisher is non-magnetic,
The container material is made of non-magnetic stainless steel.
The use of fire extinguishing agent FK-5-1-12 is
an important substitute for halon fire extinguishing agent.
It is colorless, odorless, low-toxic, non-conductive, does not pollute the protected objects and
will not cause damage to property and precision facilities, nor

It will cause human and livestock hazards during use.
It can reliably extinguish Class A, B, C fires and Class E electrical fires
with a low extinguishing concentration, and it does not contain particles or oily residues after release.

No damage to the atmospheric ozone layer, ODP is 0

The global greenhouse effect potential GWP is 1
The retention time in the atmosphere is 5 days
which meets environmental protection requirements.
AKA Halon Chihailong non-magnetic
fire extinguisher is specially designed for MRI... and other strong magnetic field environments
.
The clean gas fire extinguishers developed have been widely used in large hospitals and
scientific research institutions at home and abroad.





AKA Halon FK-5-1-12 is no corrosive, has good insulating property, never damages electronic equipment, precision instruments, paper documents, cultural relics and antiques, generates no residue after use, and may substitute for sprinkler system, and dry chemical and foam extinguishing system to protect the high-valued assets.
FK-5-1-12 extinguishing agent has excellent extinguishing characteristics and it can put out Type A, B and C fire, is non-conductive and after ejection it fast evaporates without any residue. Its extinguishing concentration is 3.5% and 4.5% for Type A or Type B fire, which mostly approaches that of halon extinguishing agent.

Ozone Depletion Potential Of Zero
FK-5-1-12 clean extinguishing agent has good environmental harmony, and its Ozone Depletion Potential (ODP) is 0, Global Warming Potential (GWP) <1.0, and the Atmospheric life Time (ALT) is 0.014 year

Results of toxicity test of FK-5-1-12

Test item

Test result

4-hour acute inhalation

Almost no toxicity (LC50100000ppm)

Carcinogenicity

No carcinogenicity

Acute oral

Low (LD505000mg/kg)

Acute dermal

Low (LD502000mg/kg)

Irritation to eyes

No irritation

Irritation to skin

No irritation

Allergy to skin

Non-skin sensitizer

Chromosome aberration

Negative

From the above it is clear that FK-5-1-12 extinguishing agent ensures the extinguishing efficiency, meets the requirements on use safety, is almost harmless to human body, and is much suitable for extinguishing and protection of the person-residing place.

Results of toxicity test of FK-5-1-12

Test item

Test result

4-hour acute inhalation

Almost no toxicity (LC50100000ppm)

Carcinogenicity

No carcinogenicity

Acute oral

Low (LD505000mg/kg)

Acute dermal

Low (LD502000mg/kg)

Irritation to eyes

No irritation

Irritation to skin

No irritation

Allergy to skin

Non-skin sensitizer

Chromosome aberration

Negative

From the above it is clear that FK-5-1-12 extinguishing agent ensures the extinguishing efficiency, meets the requirements on use safety, is almost harmless to human body, and is much suitable for extinguishing and protection of the person-residing place.

Quality specification

Product

Purity/%

Water  content/ ppm

Acidity (as HCl)/ ppm

Non-volatile  residue(%)

Suspended  matter
 or sediment

FK-5-1-12

≥99.7

≤10

≤3

≤0.01

NONE



FK-5-1-12 Physical Properties:

Property

Unit Value

Molecular Mass

316.4

Boiling Point at1013bar

49.2

Freezing Point

-108

Liquid Density 25

1.6g/ml

Liquid Viscosity

0.524 cp

Critical Temperature

168.66

Critical Pressure

18.66 bar

Critical Density 639.1kg/m³
Heat Of Vaporization At Boiling Point 88 kj/kg
Solubility Of Water in FK-5-1-12 25 <0.001 wt%
Vapour Pressure 25℃  0.405.87)bar(psia)
Dielectric Strength ~ 110KV/mm





FK-5-1-12
Compare to the Environmental spec of FK-5-1-12 and Halon and part of the product

Item

FK-5-1-12

HFC-227ea

HFC-236fa

Halon1211

Halon1301

ODP

0

0

0

4

10

GWP

1

3800

9400

11300

6900

ALT

0.014

36.5

226

11

65

ODP: Ozone Depletion Potential     GWP: Global Warming Potential
ALT:Atmospheric Life Time (per Year)



Highly efficient and safe for people
The extinguishing concentration of FK-5-1-12 clean extinguishing agent is much lower than NOAEL value, and has extremely low toxicity and thus high safety. The extinguishing agent is registered in USE.P.A.T.S.C.A.
FK-5-1-12 Concentrations and Safety Margins Comparison:

Item

FK-5-1-12

HFC-227ea

CO2

Halon1301

Boiling Point

49.2

-16.4

-78.4

-57.8

Use Concentration

4-6%

7.5-8.7%

30-75%

5%

NOAEL

10%

9%

5%

5%

Safety Margine

72-122%

5.9-20%

  Lethal

0

NOAEL Invisible Harm Concentration



Safety Margins= FK-5-1-12 -Use Concentration / Use Concentration X 100%



The chemical name of FK-5-1-12 is perfluoro (2-methyl-3-pentanone),
its CAS number is 756-13-8,
chemical code is FK-5-1-12,
molecular formula is C6F12O, and structural formula is:

 FK-5-1-12 AKA Halon same as 3M Novec1230
