HeadLight BIG5
Autopure LED 超高亮汽車大燈 頭燈 完全取代高熱HID燈 LED 車用大燈 燈泡 汽車LED大燈 機車LED大燈

Autopure High Power Super LED Head Light for
revolution for the HID car head light
LED conversion kit headlight bulbs for cars trucks and SUVS
ETI Phillips Quality LED Bulbs LED HEADLIGHT BULB led headlight bulbs

TaiwanWhite®
2018 LED HEADLIGHT

4800 Lm XHP504300K 6000K
CREE XHP-50 LED Car head light 4800Lm 6000K
Super WHITE clear light

The best solution to substitute HID bulb lights
H7
4800Lm 6000K
TaiwanWhite® LED car headlights use CREE XHP-50 chip
(Best quality and performance chips in U.S.A.)
Built in original bulb socket plug and play connector, easy installation.
360 Degrees Adjustable Axis Able To Obtain The Best Light Type/Angular.

H1 H3 H4 H7 H8 H9 H11 H13 H16 HB1 HB2 HB3 HB4 HB5 9003 9004 9005 9006 9007
CREE XHP-50 LED Car head light 4800Lm 6000K
super WHITE clear light
The best solution to substitute HID bulb lights


Bright as 55W HID
Draw less power from battery

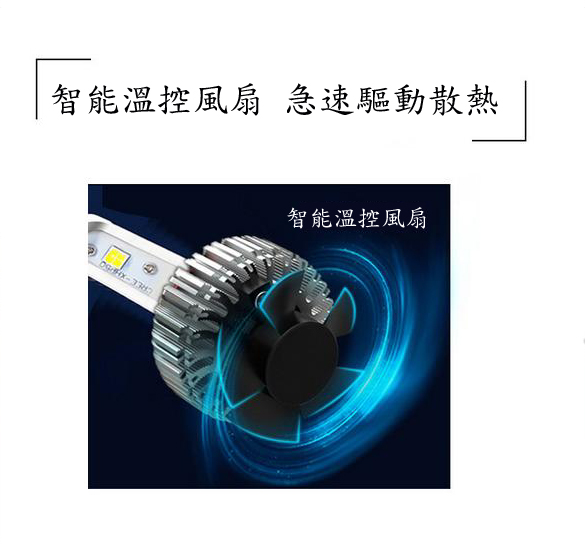

Mini Cooling Fan
No need warm up
No need ballasts
No need relay
No more worry ballast die
No error code issue
No Flicker issue

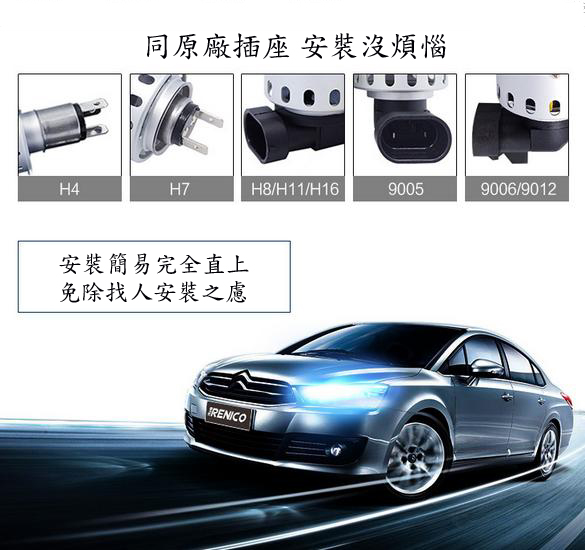

Built in original bulb socket plug and play connector
Adjustable Light Type/Angular.

High-quality, high-power 40W 4800Lm each bulb,
LED car headlights made by the newest CREE XHP-50 chip (Best quality,
and performance chips), Brass braid accelerate
the heat dissipation to better heat dissipation.

2016 Automotive LED headlamps advantages
LED lights more power than traditional halogen energy,
Although, Xenon lamp brightness and proximity but LED lights light up without delay,
to enhance road safety. Instant start no strong currents impact,
effectively protecting the car battery, improving battery life of more than 30%
Fast cooling the appearance of the most advanced no fan design.

Power driver with wide voltage constant current mode,
the car can respond to a variety of voltage
instability, the effective protection of
normal use LED efficient and simple structure, fewer components damaged,
Repair
the probability is very low, Operating temperature is low,
compared with HID ballast repair lower than 80% and Xenon high working temperature,

The standard style HID ballasts are hard starting, this means when the ballast fires,
it sends full power to the cold bulb. Over time this shortens the bulb life and reduces visibility.
Digital ballasts are soft starting, this means when the ballasts fire, it starts by
sending a low amount of power to the bulb and steadily increases power over
the next minute until the bulb is to its maximum brightness.
This gives more life to your HID bulbs, more vivid colors, and gives you more visibility.
LED car headlights simple structure, fewer parts than Xenon lamps, no ballast, no fan with
simple LED driver instant light up, significantly lower than the Xenon lamp failure rates.


Warranty
All of our LED Conversion Kits are covered by 6 month Warranty.
The warranty covers any factory defects with the bulbs.
If the product stops working within 6 month from the date you purchased it,
send it back to us and we will replace the defective item. It's as easy as that!
Keep in mind  that our defective rate on LED kits and parts is less than 0.43% so you can feel free to buy.

Install Caution
1. As a safety precaution, make sure that the car has had time to
cool down properly before starting the installation process.
2. Put the vehicle into park or make sure it is securely in gear.
3. Make sure to have the ignition turned off and the keys removed.
4. Be careful to avoid burns, especially when turning on or off the vehicles lighting.
5. Be careful to avoid crushing or cutting the bulbs.
Also make sure to not touch the bulbs with your fingers, as this will cause blotting.
6. Fully examine the connection of the contact points,
ports and the wires as faulty connections can cause lighting problems.
7. Make certain that the end of the bulb does not come in contact with
the interior light shield of the headlight when adjusting the bulb

 40W Head light Cree XHP50 4800Lm IP68

The 3rd Generation Intelligent control LED CREE XHP-50 chip with mini cooling fan
High heat dissipation performance product.
Super Quality H1 H3 H4 H7 H8 H11 H13  9004 9005 9006 9007...
Not need Ballasts, Not Need Relay.
CAR AUTOMOBILE LED HEADLIGHT BULB 4800Lm 40W H1 H3 H4 H11 H13 9005 9006 9004 9007

H4 40W 4800Lm Headlight Bulb Low Beam  On DB-Benz      H4 40W 4800Lm Headlight Bulb High Beam On DB-Benz


H1 H3 H7 H13 H16
H4/9003/HB2
9004/9007/HB1/HB5
9005/HB3/H10
9006/HB4
H8/H9/H11

Working Power40W
Light Source: CREE XHP-50 CHIPS
Operating Voltage: 12-24V DC
Waterproof Rate: IP68
Optional Color: Silver
Color Temperature: 6000K
Housing Material: Aluminum and copper
Heat Dissipation: mini turbofan with heat sensor
Lumen: 4800Lm per bulb
Life Span: about 30000 hours
Operating Temperature: -40
+80
Install Space: L110mm X W25mm
Lumen/W: 120Lm/W
Weight: 0.50Kgs/set

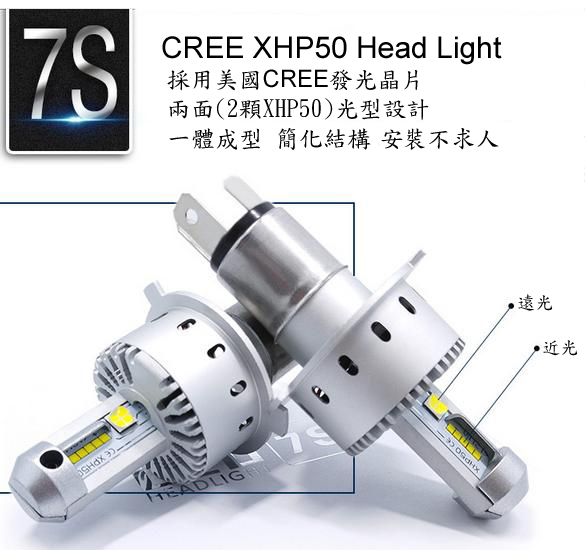

H4 9004 9007 Bi-beam far/near headlight bulbs,
CREE XHP-50 high power chip, free to modify, it is as simple as replacing light bulbs,
direct change (replacement: took a photo of original device, after loading in order to change).
Not a HID Xenon lights,  power-saving LED headlights with high light low calorie.
Super power, electricity consumption about 1/3 one-third 35W HID and 1/5 one-fifth of
General halogen bulb power consumption.
And a longer lifespan than halogen lamps, HID. No cooling fan design. Life time More than 30,000 hours ;
not more broken by failure LED lights fan and the high temperature melting, burning the whole lamp,
Permanent settlement LED heat sink problem. .

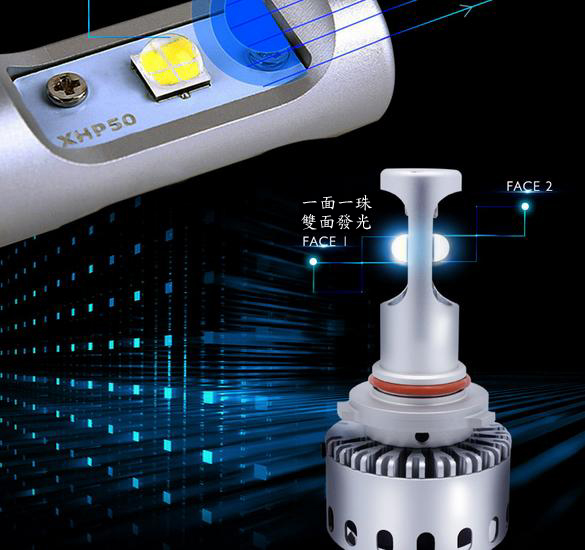

CREE XHP-50 LED chips special designed for automobile industry, chips on board COB
High temperature resistant 2.50 °C/W
No cooling fan design equipped with 6063 Aerostatic aluminum heat sink,
water proof IP68Color temperature 6500K, Power consumption about 1/3 HID and 1/5 general bulb.
http://www.cree.com/LED-Components-and-Modules/Products/
Even in 100-degree heat, and only 5% light attenuation efficiencies.
Launched the 2nd generation of the new LED headlights
, generation based on improved a lot,
whether it's brightness
, or a cooling effect
, there are light-up.
Use a combination of three kinds of metal:
Copper (heat conduction rate second only to silver),
Silver (speed up conduction velocity),
More advanced use of professional automotive CREE XHP-50 chips (heat resistant up to 150
°C
become the subject of your car headlights, enjoy luxury car level LED headlamps of superiority.

Don't know your Bulb size please go to :
http://www.sylvania.com/en-us/applications/automotive-lighting-systems/Pages/lrgmain.aspx

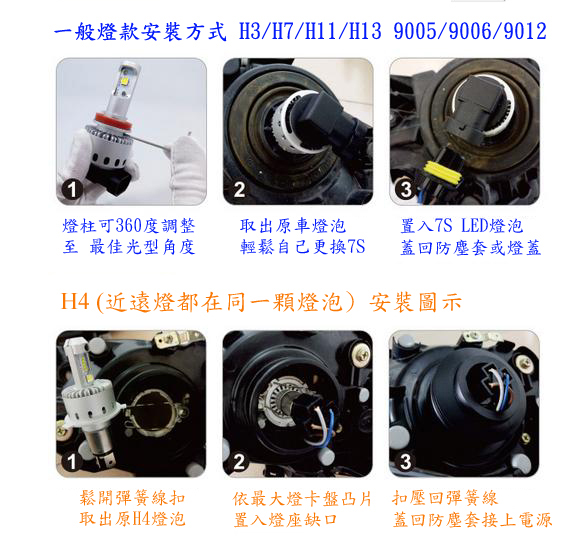

How to install H4 High/Low LED 40W 4800Lm 6000K on W124 1996 Mercedes Benz
Removed your HID kits/Stock bulbs
Insert new LED into your Headlight Housing and locked with spring clip
Connected your H4 LED wire to your stock socket
All connected you are good to go

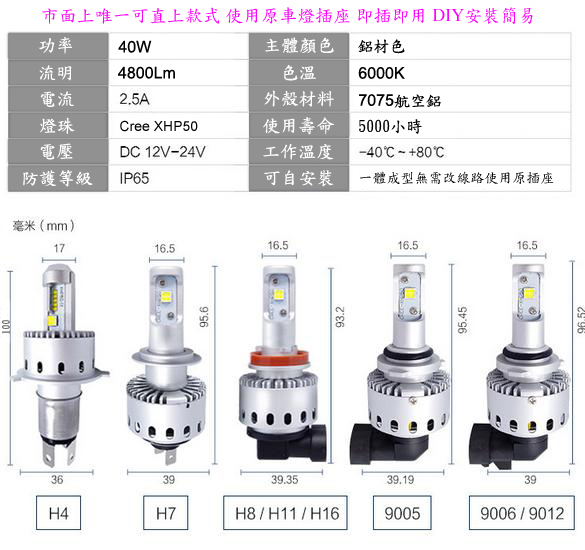

Item No.    Specification Dimension (mm) Box Package

H4
9003
HS1 HB2

Power: 40W
Light Source: CREE XHP-50
Operating Voltage: 12-24V DC
Waterproof Rate: IP68
Optional Color: Silver
Color Temperature: 4300K / 6000K
Housing Material: 7075 Aviation Aluminium
Heat Dissipation: Mini Turbofan
Lumen: 4800Lm
Life Span: about 30000 hours
Operating Temperature: -40 - +80
Install Space: L100 X W36 X H17mm
40W 4800Lm
H4  HS1
H7
Power: 40W
Light Source: CREE XHP-50
Operating Voltage: 12-24V DC
Waterproof Rate: IP68
Optional Color: Silver
Color Temperature: 4300K / 6000K
Housing Material: 7075 Aviation Aluminium
Heat Dissipation: Mini Turbofan
Lumen: 4800Lm
Life Span: about 30000 hours
Operating Temperature: -40 -- +80
Install Space: L95.6 X W39 X H16.5mm
40W 4800Lm
H7
H11
H8 H9 H16
Power: 40W
Light Source: CREE XHP-50
Operating Voltage: 12-24V DC
Waterproof Rate: IP68
Optional Color: Silver
Color Temperature: 4300K / 6000K
Housing Material: 7075 Aviation Aluminium
Heat Dissipation: Mini Turbofan
Lumen: 4800Lm
Life Span: about 30000 hours
Operating Temperature: -40 - +80
Install Space:L93.2 X W39.5 X H16.5mm
40W 4800Lm
H11  H8
9005
H10 HB3
Power: 40W
Light Source: CREE XHP-50
Operating Voltage: 12-24V DC
Waterproof Rate: IP68
Optional Color: Silver
Color Temperature: 4300K / 6000K
Housing Material: 7075 Aviation Aluminium
Heat Dissipation: Mini Turbofan
Lumen: 4800Lm
Life Span: about 30000 hours
Operating Temperature: -40 - +80
Install Space: L95.5 X W39.2 X H16.5mm
40W 4800Lm
9005
9006
HB4
Power: 40W
Light Source: CREE XHP-50
Operating Voltage: 12-24V DC
Optional Color: Silver
Color Temperature: 4300K / 6000K
Housing Material: 7075 Aviation Aluminium
Heat Dissipation: Mini Turbofan
Lumen: 4800Lm
Life Span: about 30000 hours
Operating Temperature: -40 - +80
Install Space: L96.5 X W39 X H16.5mm
40W 4800Lm
9006
H1
Power: 40W
Light Source: CREE XHP-50
Operating Voltage: 12-24V DC
Waterproof Rate: IP68
Optional Color: Silver
Color Temperature: 4300K / 6000K
Housing Material: 7075 Aviation Aluminium
Heat Dissipation: Mini Turbofan
Lumen: 4800Lm
Life Span: about 30000 hours
Operating Temperature: -40 - +80
Install Space: L95.6 X W39 X H16.5mm
40W 4800Lm
H1
H3
Power: 40W
Light Source: CREE XHP-50
Operating Voltage: 12-24V DC
Waterproof Rate: IP68
Optional Color: Silver
Color Temperature: 4300K / 6000K
Housing Material: 7075 Aviation Aluminium
Heat Dissipation: Mini Turbofan
Lumen: 4800Lm
Life Span: about 30000 hours
Operating Temperature: -40 - +80
Install Space: L95.6 X W39 X H16.5mm
40W 4800Lm
H3
9004
9007
Power: 40W
Light Source: CREE XHP-50
Operating Voltage: 12-24V DC
Waterproof Rate: IP68
Optional Color: Silver
Color Temperature: 4300K / 6000K
Housing Material: 7075 Aviation Aluminium
Heat Dissipation: Mini Turbofan
Lumen: 4800Lm
Life Span: about 30000 hours
Operating Temperature: -40 - +80
Install Space: L100 X W36 X H17mm

40W 4800Lm
9004 9007

Patent Pending
LightSourceTestReport

Code Error issue: contact us you may need a Code Decoder
