CapAds® are the newest innovation in mobile marketing.

CapAds®  will transform your car's wheels into eye-catching mobile advertisements, with pedestrians,

drivers and shoppers staring at your company's style as your advertising "Su anuncio aqui" by

the unique patented wheel cover of CapAds®  has been specifically designed not to rotate with the wheel.

Your advertisement stays constantly upright and readable at any speed, so Mini or Ferrari, your company car

turns into a valuable investment in promoting your business / your business marketing strategy.

The non-rotating wheel cover replaces traditional hubcaps on your chosen car to create an

eye-catching advertisement that remains stationary while the car is in motion.

Use CapAds®  to display your company logo, website address, promotions or photos and

give your company a competitive advantage.

Turn the wheels of your company cars, fleet vehicles and taxis into a powerful branding medium
that is so clever and unique, they can't be ignored.

CapAds®  can be fitted to any car of your choice. Turn fleet vehicles, delivery vans,

company cars or even hire cars and taxis into a valuable traveling advertisement.

@

CapAds®  1st AND 2nd Generation
NO NON NOT ROTATING WHEEL COVER - NON SPIN- STAY STILL AND NOT ROTATION ADVERTISING MEDIA HUBCAP

for standard or O.E.M. car steel wheel, installation same as normal wheel cover.

@

CapAds®  3rd Generation
NO NON NOT ROTATING WHEEL KIT - NON SPIN- STAY STILL AND NOT ROTATION ADVERTISING MEDIA WHEEL KIT

for van, truck, bus, CRV and SUV with universal T6061 adaptor Stop_X and connector

fit almost 85% market car's alloy wheel and road steel wheel suitable different lug nuts and PCDs wheel

bigger area for project media (Æ366~560mm) size covering: 8"~24"

( Approved test 190km/hr not rotating - stay still  - moved angle 10X )

Non Rotating

Media wheel kit extensive swing area good for advertising

Stop_X

Stop_A8" Stop_C13" Stop_D14"
Stop_E15" Stop_F16" Stop_G17"
Stop_H18" Stop_I19" Stop_J20"
Stop_K22" Stop_L24"

Universal fit wheels 8"/10"/12"/13"/14"/15"/16"/17"/18"/19"/20"/21"/22" and 24"

chrome steel bearing ABEC3
equipped
- AISI304-AISI440C ISO CLASS6 ABEC-3 resistant to corrosion and high temperature.

Easily to attach either alloy wheels or steel wheels 8"~24"
simply screw on or off, leaving no trace of installation.

Optional promotion wheel wrench, hex key, screw driver ....installation hand tools are provided

Remove original lug nuts and switch to CapAds® lug nut connectors.
Install universal adaptor, then screw on your personal faceplate.
@

ONE UNIT TO FIT ALL WHEELS - EXCEPT DISK

Universal T6/T7/T8 alloy adaptor and connector

Available T7075 super aero space alloy material

Universal fit mostly 85% alloy wheels or steel wheels

Bigger flat disk faceplate Æ360, 385, 410, 445, 465, 495 and 600mm for advertisement

Remove original lug nuts and attach CapAds® lug nut connectors.
Install universal adaptor, then screw on your personal faceplate

Easily to attach either alloy wheels or steel wheels 8"~24"
simply screw on or off, leaving no trace of installation.


THE BEST WAY FOR ADVERTISING-MEDIA
CapAds® keeps messages upright and readable in the center of not rotating wheels at speeds over
120km/hr. When the wheel spins, a special weighted center piece on the center disk keeps
your message upright and not rotating.

Universal fit for almost any type and size wheel.
Having the widest length and option selections for connector lug nuts and bolts

to assure the best fit to any wheel (from 50mm to 120mm with 5, 10 and 20mm increments).

Also universal lug nuts/bolts extender available.

Universal PCD disk fits on 4,5,6,8,10 and 12 lugs
for 8",10",12",13",14",15",16",17",18",19",20",22" and 24" alloy or steel wheels.
Multiple color and size faceplate available to fit golf, passenger, pick-up, SUV, CRV, mini-bus,
small truck...etc.
Super flat and bigger size face plate for media

Dia. 220-230mm, 350-360mm, 380-385mm, 400-410mm, 440-445mm, 460-465mm,
480-490mm, 520-520mm, 540-550mm, 590-600mm and 640-650mm...etc.

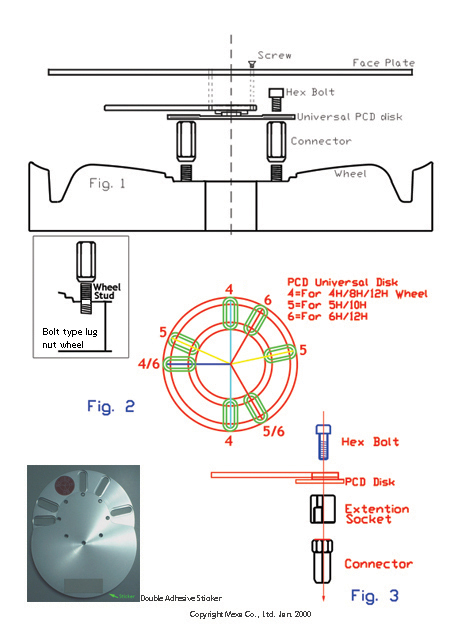

CapAds® 3rd generation Instruction Manual
1.Contains 2.Installation 3.Warnings 4.Maintenance 5.Warranty


1. Contains:
(a) Faceplate (d) PCD universal Disk
(b) Screw (e) Space Extender
(c) Hex Bolt (f) Connector
@

2. Installation:

1) Check the wheel lug nut size & pitch circle diameter (PCD)

2) Remove 3 non-contiguous original wheel lug nuts or bolts and
     replace with 3 same size of original wheel lug nut or bolt
     connectors as shown in (fig. 1).

3) Torque 3 connector lug nuts to the correct original equipment
     specification, use Space Extender if the wheel has small/minus
     off-set. Bolt type lug nut may alternate by equipped wheel stud.

4) Rotate the PCD universal Disk until the open area stops on the
     correct bolt circle slot of 3 wheel lug nut (Fig. 2).

5) Place PCD universal Disk on 3 connector lug nuts.

6) Align the correct bolt circle slot (4/5/6/8/10&12 Lugs) of PCD
     universal Disk with any one of 3 connector lug nuts and hand
     tighten (Fig. 2).

7) Hex Bolt with hex wrench for fastening and rotate the PCD
     universal Disk to next Connector lug nut (Fig. 3).
     Make sure spinner has a clear space and room from the wheel
     surface for a free spin.

     It may necessary to add Extended socket, washer or normal
     M12 or M14 hex nut as spacer with longer fastening bolt or
     hex bolt to prop up PCD universal Disk is applicable.

8) Repeat the step of (7) for all 3 connector lug nuts.

9) Torque each Hex Bolt to 20 FT-LB (Do not over torque).
     Must check torque on all 3 hex Bolt after 20 miles and it's the
     customer's responsibility to check the tightness of all hex bolt
     and free spins space.

10) locate the faceplate into any 4 (5mm) holes of the PCD
     universal Disk, stick on vinyl picture about 45 angle from
     the center line of face plate for an up right view the media
     when car was in motion.

@

3. Warnings:

a) Sure your wheel is workable with appointed non rotating kit.

b) Keep children and fingers away from PCD universal Disk while in
    motion.

c) Don't try to touch the spinners while in motion

d) Never try to disassemble the factory-assembled non rotating kit

e) Must apply the safety procedures and equipments when installing
    or removing the non rotating kit.

f) Not for off-road use.

g) Always check the tightness of all 3 hex/fastening bolt and the

    safety space or room between spinner and wheel for sure free spins

h) Do not dip non rotating kit under the water.

i) Insert a double adhesive sticker between oblong weight end and
   under surface of face plate to prevent flapping around
   may be needful.


4. Maintenance:
1) Use hand wash to clean the faceplate and do not
go through the car washing machine
2) Do not use chemicals that are erosion to alloy
surfaces of spinner and wheels.

5. Warranty:
One (1) year of alloy finish and all parts
Unauthorized disassembling and usage the non
rotating kit voids the warranty

@

Mexa Co., Ltd.

3F., No. 128 Ku Ling Street (GuLing Street), Taipei 100, Taiwan

Tel.+886223657700 Fax.+886223657702

Factory:No.91 Kung Ming Road, Tsun Tou Liau Industry Area, Tainan, Taiwan Tel.886-62467820
