mini bikee autopure® super high tech.

HIGH PERFORMANCE DESIGN

SUPER LIGHT-WEIGHT HIGH QUALITY T6 ALLOY ALUMINUM

SOPHISTICATED AND STRONG CONSTRUCTION

CAN BE EASILY CARRIED IN: CAR, RV, BOAT, CAMPER, AIRCRAFT ETC.

CAN BE USED BY ALL PEOPLE FROM 6 YEARS OLD

ADJUSTABLE HANDLEBAR AND SEAT POST WITH A MAXIMUM LENGTH OF 1.90 m

FRONT AND REAR SUSPENSION

12"x12" ALLOY WHEELS WITH AIR TIRES

DUAL BRAKE-DISCS ON BOTH WHEELS

SMART BREAKING SYSTEM WITH POWER-MODULATOR

CAPACITY 120 KGS

Packing: 1 Set/Carton Size: L 87x H 57x W 20.50cm /3.4'cf,   N.W. / G. W.: 13 KGS / 14.50 KGS

¡@

¡@How This high-tech T6 alloy mini bike - mini bicycle is made



HIGH TECHNICAL PERFORMANCE

ALLOY BIKE

20" Folding Bicycle

M2-10 M2-30

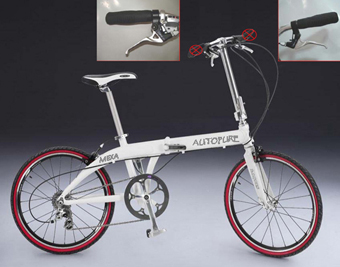

M2-10 WHEEL 20"- 8 SPEEDS

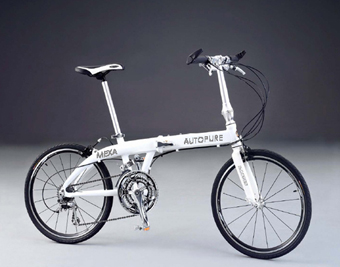

M2-30 WHEEL 20"- 30 SPEEDS

EXTENDED SIZE: L 153xH65--98cm (SADDLE) EXTENDED SIZE: L 153xH65--98cm (SADDLE)
FOLDED SIZE: L83xW35xH650cm FOLDED SIZE: L83xW35xH650cm
NET WEIGHT: 10.50 KGS. NET WEIGHT: 10.50 KGS.
1 SET/CTN/6.63CF'  20FT/150 SETS, 40FT/320 SETS, 40HQ/400 SETS 1 SET/CTN/6.63CF'  20FT/150 SETS, 40FT/320 SETS, 40HQ/400 SETS
ALLOY FRAM WITH PATENTED FOLDING SYSTEM
ALLOY FRONT FORK
ALLOY STEM WITH FORGED FOLDING SYSTEM
ALLOY HANDLE BAR
BLACK 2 DENSITY GRIPS 130L WITHOUT BAR ENDS
ALLOY 1-1/8" HEAD PART WITH SEALED BEARINGS
FRONT ALLOY RIM 20"X1-1/8" 16H
REAR ALLOY RIM 20"X1-1/8" 20H
STAINLESS STEEL SPOKES PSR 2.0
KENDA TIRE AND TUBE 20"X1-1/8"BK F/V 100PSI
ALLOY FRONT HUB WITH QUICK RELEASE 16H SEALED BEARINGS
ALLOY REAR HUB WITH QUICK RELEASE 20H SEALED BEARINGS
CASSETTE 8SP 12-25T
FRONT ALLOY ROAD DERAILLEUR
REAR ALLOY ROAD DERAILLEUR
ALUMINUM THUMB-TAP SHIFTER LEFT RIGHT
ALLOY CHAIN WHEEL AND CRANK 3/32"X52TX165MM
RACING CHAIN FOR 8 SPEED
FOLDABLE PEDALS 9/16"
VINYL SADDLE BLACK OR WHITE
ALLOY SEAT POST Dia. 28.60 X530mm
DIE-CAST ALLOY DUAL PIVOT ROAD CALIPER BRAKE FRONT AND REAR
DIE-CAST ALLOY BRAKE AND COLD FORGED LEVER
ALLOY FRAM WITH PATENTED FOLDING SYSTEM
ALLOY FRONT FORK
ALLOY STEM WITH FORGED FOLDING SYSTEM
ALLOY HANDLE BAR
BLACK 2 DENSITY GRIPS 130L WITH ALLOY BAR ENDS
ALLOY 1-1/8" HEAD PART WITH SEALED BEARINGS
FRONT ALLOY RIM 20"X1-1/8" 16H
REAR ALLOY RIM 20"X1-1/8" 20H
STAINLESS STEEL SPOKES PSR 2.0
KENDA TIRE AND TUBE 20"X1-1/8"BK F/V 100PSI
ALLOY FRONT HUB WITH QUICK RELEASE 16H SEALED BEARINGS
ALLOY REAR HUB WITH QUICK RELEASE 20H SEALED BEARINGS
SRAM OG-1070 CASSETTE 10SP 12-27T
FRONT MICRO SHIFT ALLOY ROAD DERAILLEUR
REAR MICRO SHIFT ALLOY ROAD DERAILLEUR
MICRO SHIFT ALUMINUM THUMB-TAP SHIFTER LEFT 3SP AND RIGHT 10SP
7075/T6 ALLOY CHAIN WHEEL AND CRANK CNC  52T/39T/30TX170MM WITH CHAIN GUARD
RACING CHAIN 1/2"X11/128" SILVER
ALLOY PEDALS WITH BEARINGS 9/16"
VINYL SADDLE BLACK OR WHITE
ALLOY SEAT POST Dia. 28.60 X530mm
DIE-CAST ALLOY DUAL PIVOT ROAD CALIPER BRAKE FRONT AND REAR

Inventor/Designer Mr. Eric Lai

Mexa Co., Ltd.

Office: 3F., No. 128 Ku Ling Street, Taipei 100, Taiwan

Tel.886223657700 Fax.886223657702

Factory: No.91 Kung Ming Road, Tsun Tou Liau Industry Area, Tainan, Taiwan Tel.886-62467820
